Overview

A custom-built HVAC control system utilizing a split-architecture design to overcome wiring limitations and provide advanced automation features not available in off-the-shelf thermostats.

The Problem

My house only had four wires in the wall for the thermostat, which prevented me from adding whole-house humidity control or independent fan circulation. I tried a Bosch WiFi thermostat, but it constantly disconnected, requiring me to wake up in the middle of the night to re-enter credentials.

Architecture

The solution was to split the brain from the interface. I built a “Head Unit” for the hallway that uses the existing 4 wires for power and high-speed serial data, communicating with a “Control Unit” in the attic that handles the actual HVAC relays.

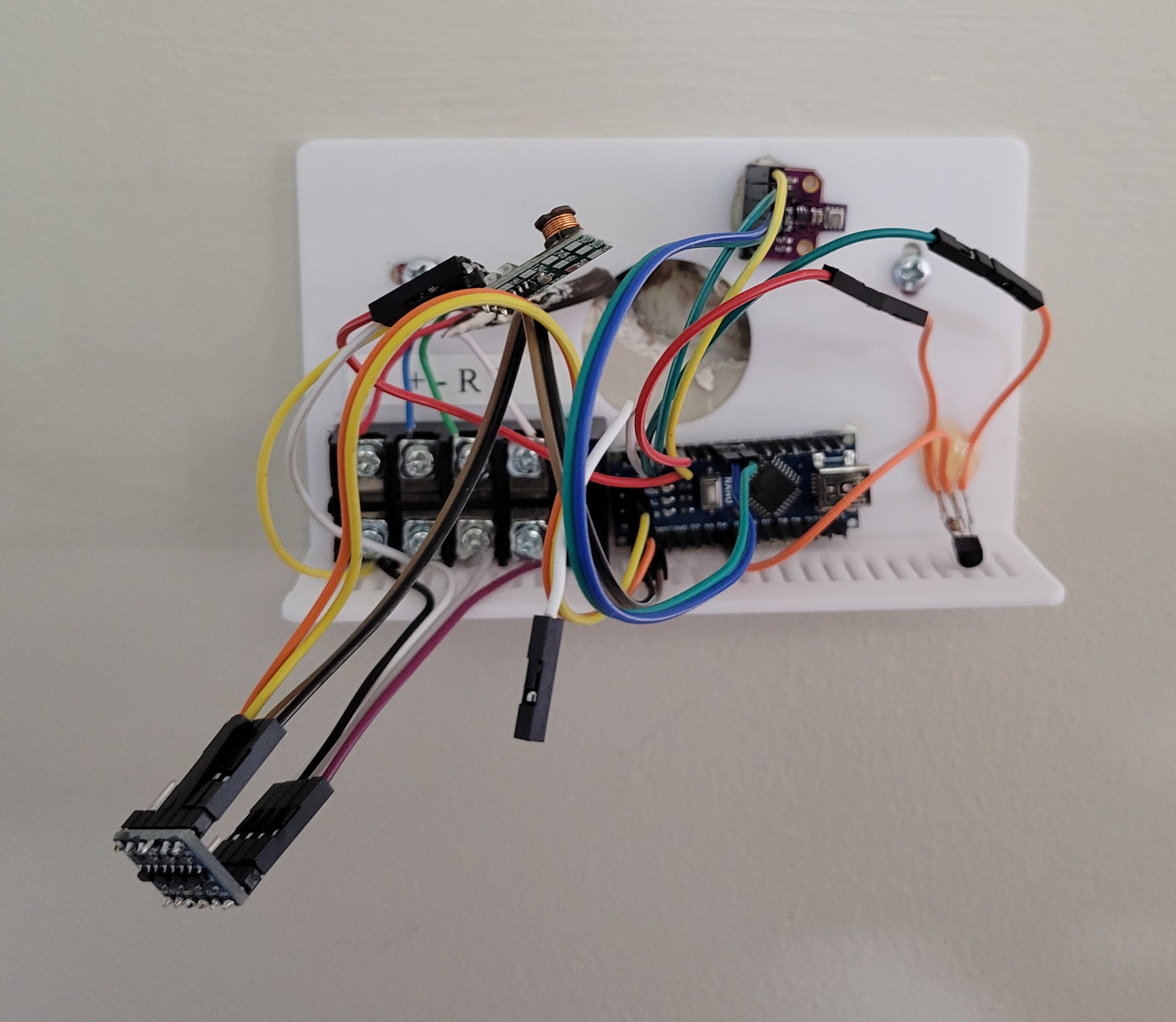

1. Head Unit (Hallway)

• Hardware: Arduino Nano, BME680 (Temp, Humidity, Pressure, Gas/Air Quality), DS18B20.

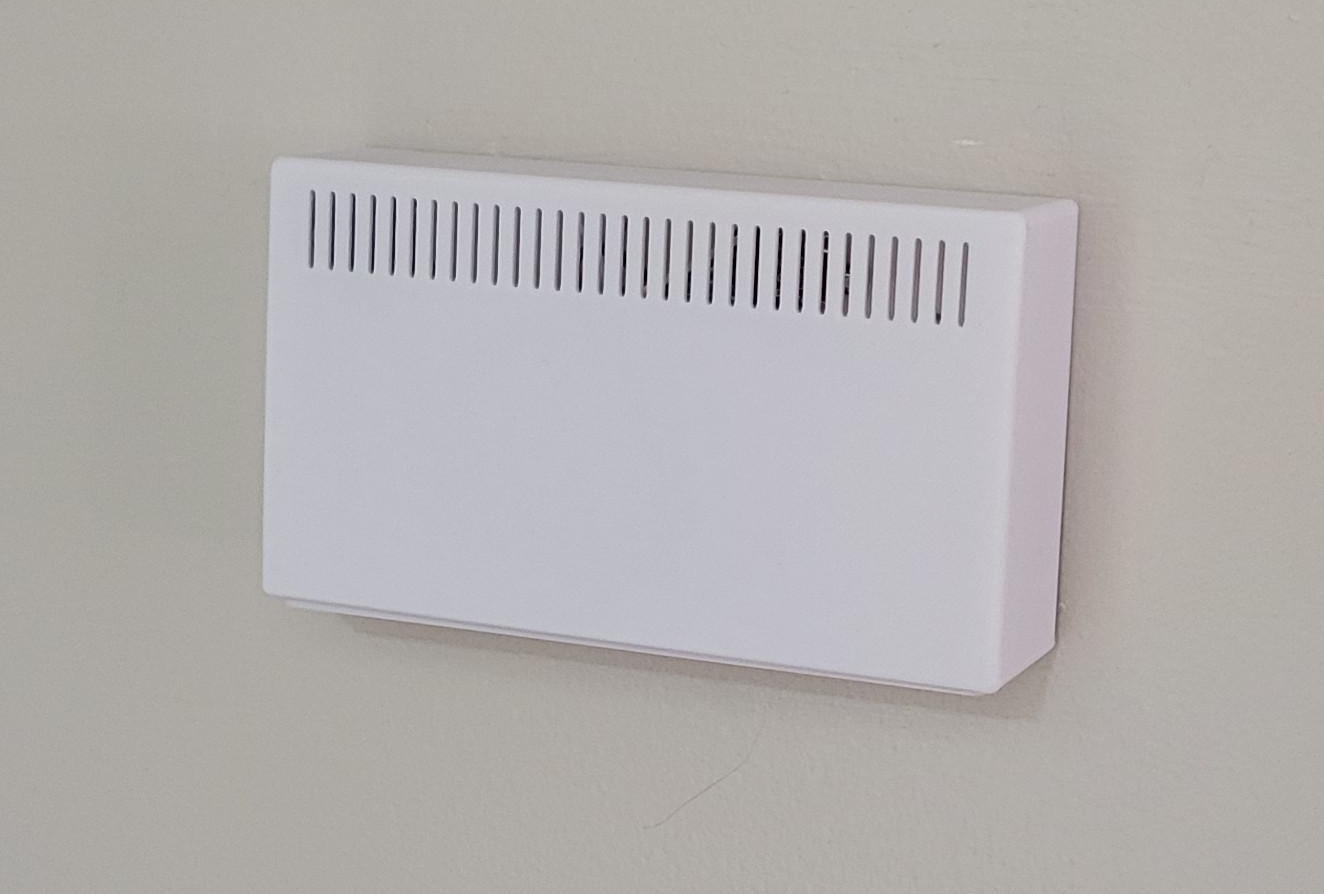

• Design: 3D printed housing designed in OnShape to fit the existing wall footprint.
• Connectivity: Sends telemetry over the 4-wire bundle using a custom logic-level serial protocol (12V/GND/TX/RX).

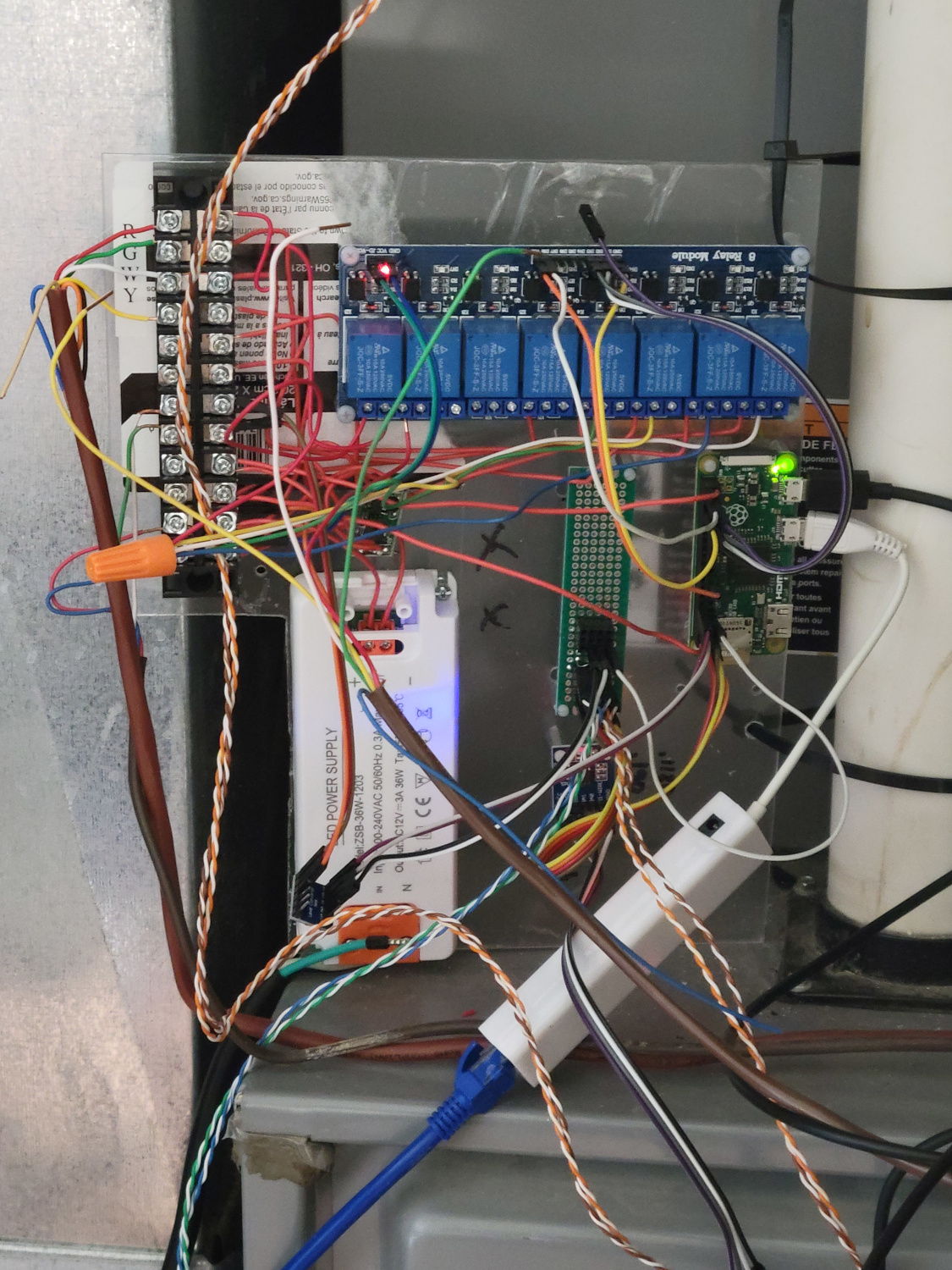

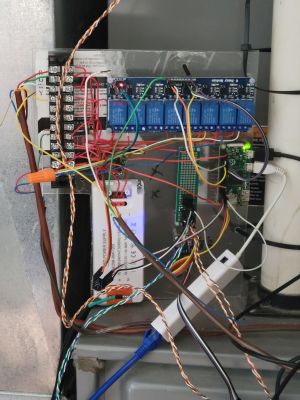

2. Control Unit (Basement)

• Controller: Raspberry Pi Zero running Node.js.
• Sensors:
  • BME280 sensors on Supply and Return plenums to calculate Delta-T and efficiency.
  • DS18B20 probes strapped to refrigerant lines to monitor compressor health.
• IO: 8-Channel Relay Board to control Fan, Heat, Cool, Humidifier, and Aux Heat.

Software & Integration

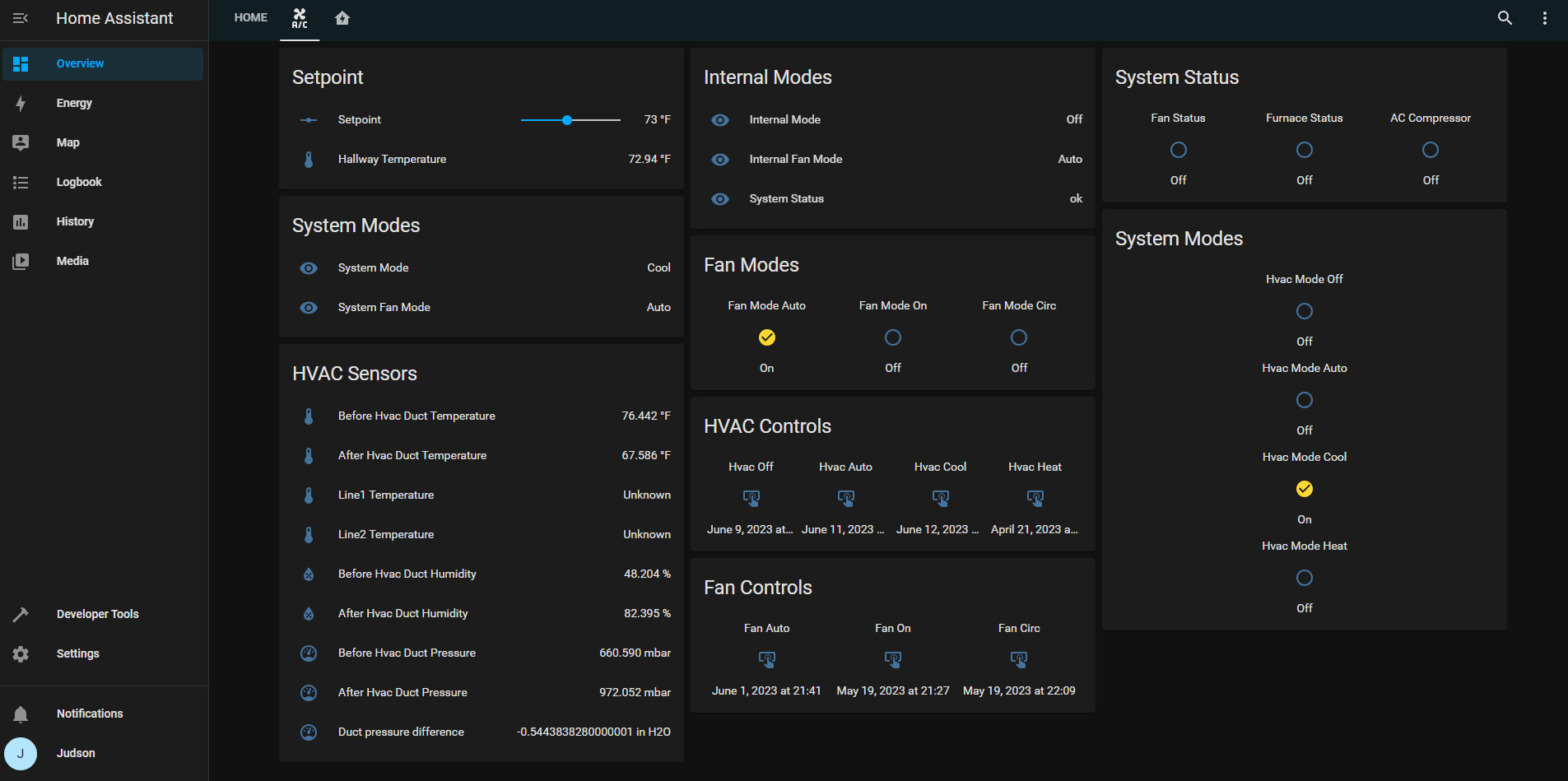

• Frontend: Leveraged my existing Home Assistant server for the UI, avoiding the need to build a custom screen on the wall unit.
• Communication: The Pi Zero interfaces with Home Assistant via MQTT.
  • State changes (e.g., “Set Temp to 72”) are published to MQTT.
  • The Node.js engine parses the command and triggers the relays.
  • This “headless” design means I can control the house from anywhere, and the schedule logic is handled by Home Assistant’s robust automation engine.

Outcome

I successfully replaced a dumb, unreliable thermostat with a fully networked climate control system. It now handles:

• Automated Humidity Control: Triggers the whole-house humidifier based on BME680 readings.
• Air Quality Monitoring: Detects VOCs/Gas resistance.
• Reliability: The hard-wired serial connection is rock solid compared to the old WiFi thermostat.
